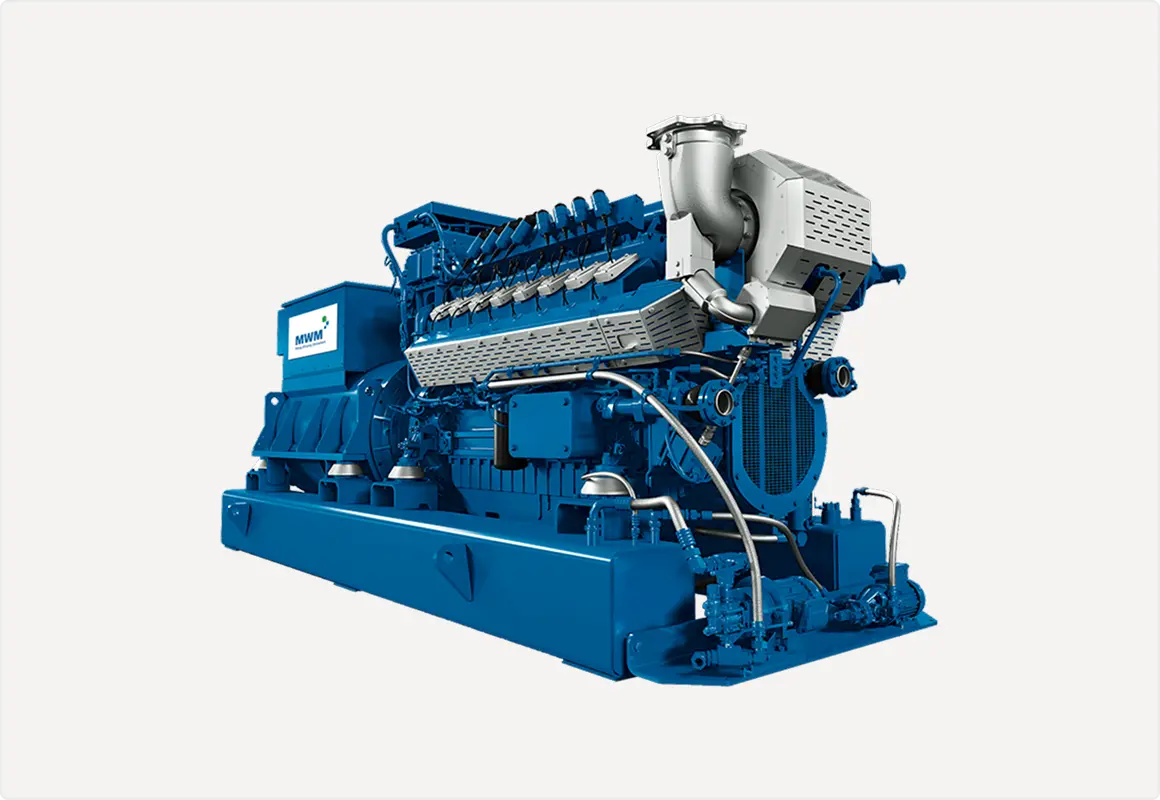

MWM TCG 3020
The MWM TCG 3020 series of gas engines offers an advanced blend of high performance and dependability. With electrical efficiency reaching up to 45%, this generation provides approximately 18% more power output compared to the previous model — without requiring more space. Designed for longevity, it allows for extended maintenance intervals of up to 80,000 operating hours under optimal gas conditions, and can deliver total system efficiency exceeding 87% when running on natural gas. Engineered for modern industrial demands, these gas engines — ranging from 1,380kWe to 2,300kWe — are built to support smart energy infrastructure. Equipped with TPEM (Total Plant & Energy Management), a fully integrated digital control platform, the system ensures peak operational performance, enhanced availability, and streamlined plant management.
ABOUT MWM TCG 3020
Gas Engine Features
All Gas Engines
1
More
More
Profit
The optimised maintenance concept with cylinder units simplifies accessibility and, along with reduction of the number of different parts, minimises the time required for maintenance.
2
Longer
Longer
Run Times
Thanks to the extended service intervals, runs up to 200 hours longer per annum than comparable products. The major overhaul is scheduled after 80,000 operating hours
3
Generator Reliability
The particle-free combustion, with pre-chamber spark plugs, extends the service intervals for the exhaust gas heat exchanger and reduces service costs compared to other combustion methods.
4
Optimum
Optimum
Efficiency
All components relevant for efficiency and power output are monitored by the TEM. The new, upgraded wastegate in particular ensures a more efficient operation with changing conditions.
5
Turbo
Turbo
Power
The high-pressure turbocharger A140, with an improved wastegate, allows operation with a broader air intake temperature range and up to higher altitudes.
TCG 3020 PERFORMANCE DATA
Natural Gas Application, NOx <500 mg/Nm3 *
Biogas, landfill gas, and sewage gas applications, NOx ≤ 500 mg/Nm3 *
TCG 3020
V12
V16
V16
V16
V20
V20
Engine type
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
Configuration
P = Optimised for high electrical efficiency
P = Optimised for high electrical efficiency
P = Optimised for high electrical efficiency
R - Optimised for high total efficiency
P = Optimised for high electrical efficiency
R - Optimised for high total efficiency
Electrical output
1,380kW
1,840kWe
1,840kWe
1,840kWe
2,300kW
2,300kW%
Electrical efficiency **
45.0%
44.7%
44.7%
44.0%
45.0%
44.0%
Thermal efficiency ***
42.3%
42.6%
42.6%
43.6%
42.3%
43.6%
Overall efficiency
87.3%
87.3%
87.3%
87.6%
87.3%
87.6%
Major Overhaul
Up to 80,000 Oh
Up to 80,000 Oh
Up to 80,000 Oh
Up to 80,000 Oh
Up to 80,000 Oh
Up to 80,000 Oh
Lube Oil Consumption
0.15 g/kWh
0.15 g/kWh
0.15 g/kWh
0.15 g/kWh
0.15 g/kWh
0.15 g/kWh
Power to heat ratio ^
1.06
1.05
1.05
1.01
1.06
1.01
TCG 3020
V12
V16
V20
Engine type
50 Hz
50 Hz
50 Hz
Configuration
X = Optimised for operation with all biogases
X = Optimised for operation with all biogases
X = Optimised for operation with all biogases
Electrical output
1,380kW
1,840kW
2,300kW
Electrical efficiency **
43.6%
43.6%
43.6%
Thermal efficiency ***
42.7%
42.7%
42.9%
Overall efficiency
86.3%
86.3%
86.4%
Major Overhaul
Up to 64,000 Oh
Up to 64,000 Oh
Up to 64,000 Oh
Lube Oil Consumption
0.15 g/kWh
0.15 g/kWh
0.15 g/kWh
Power to heat ratio ^
1.02
1.02
1.02
* With 5% O2 and dry exhaust gas
** According to ISO 3046-1
*** Thermal output ±8 %
^ The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
Specifications
Dimensions and Weight
| TCG 3020 | V12 | V16 | V20 |
|---|---|---|---|
| Engine type | 50 Hz | 50 Hz | 50 Hz |
| Bore / stroke | 170/195mm | 170/195mm | 170/195mm |
| Displacement | 89.0dm3 | 89.0dm3 | 89.0dm3 |
| Speed | 1500min-1 | 1500min-1 | 1500min-1 |
| Mean piston speed | 9.8m/s | 9.8m/s | 9.8m/s |
| Length | 5080mm | 6100mm | 6600mm |
| Width | 1710mm | 1710mm | 1710mm |
| Height | 2190mm | 2190mm | 2263mm |
| Dry weight genset | 12900kg | 17400kg | 21490kg |
Service Intervals
| TCG 3020 | First service (check valve clearance) * | Cylinder head inspection | General overhaul |
|---|---|---|---|
| Natural gas | 4000 Oh | 40000 Oh ** | 80000 Oh |
| Purified biogas, landfill gas, and sewage gas | 4000 Oh | 32000 Oh ** | 64000 Oh |
| Unpurified biogas, landfill gas, and sewage gas | 4000 Oh | 24000 Oh ** | 48000 Oh |
Oh – Operational Hours * "after commissioning (E10)" ** "at the latest"
