MWM TCG 3016

The MWM TCG 3016 gas engine introduces a new era of energy efficiency, combining compact design with outstanding reliability, durability, and performance in the 400 kWe to 800 kWe range. As the most space-efficient engine in the MWM portfolio, it helps reduce both installation complexity and ongoing operational costs. The integration of the intelligent Total Plant and Energy Management (TPEM) system ensures high availability and streamlined plant performance. With advanced oil system optimization and state-of-the-art cylinder and turbocharger technology, the TCG 3016 sets a new standard for dependable, long-term power generation.

TCG 3016

Efficiency Goes Digital

Electrical Output
400kWe - 800kWe
Engine Layout
8cyl - 12cyl - 16cyl
Download catalog PDF

ABOUT MWM TCG 3016

Gas Engine Features

All Gas Engines
1

More
Profit

The optimised maintenance concept with cylinder units simplifies accessibility and, along with reduction of the number of different parts, minimises the time required for maintenance.

2

Longer
Run Times

Thanks to the extended service intervals, runs up to 200 hours longer per annum than comparable products. The major overhaul is scheduled after 80,000 operating hours

3

Generator Reliability

The particle-free combustion, with pre-chamber spark plugs, extends the service intervals for the exhaust gas heat exchanger and reduces service costs compared to other combustion methods.

4

Optimum
Efficiency

All components relevant for efficiency and power output are monitored by the TEM. The new, upgraded wastegate in particular ensures a more efficient operation with changing conditions.

5

Turbo
Power

The high-pressure turbocharger A140, with an improved wastegate, allows operation with a broader air intake temperature range and up to higher altitudes.

TCG 3016 PERFORMANCE DATA

NOx <500 mg/Nm3 *

Natural Gas Application
Biogas, Landfill Gas, and Sewage Gas Application
TCG 3016
V08
V12
V16
Engine type
50 Hz
50 Hz
50 Hz
Electrical output
400kW
600kW
800kW
Mean effective pressure
18.9 bar
18.9 bar
18.8 bar
Thermal output ± 8%
404kW
618kW
821kW
Electrical efficiency
43.1%
43.3%
43.5%
Thermal efficiency
43.6%
44.6%
44.6%
Overall efficiency
86.7%
87.9%
88.1%
Power to heat ratio **
0.99
0.97
0.98
TCG 3016
V08
V12
V16
Engine type
50 Hz
50 Hz
50 Hz
Electrical output
400kW
600kW
800kW
Mean effective pressure
18.9 bar
18.9 bar
18.8 bar
Thermal output ± 8%
394kW
599kW
791kW
Electrical efficiency
42.8%
42.9%
43.1%
Thermal efficiency
42.2%
42.8%
42.6%
Overall efficiency
85.0%
85.7%
85.7%
Power to heat ratio **
1.01
1
1.01

* With 5% O2 and dry exhaust gas

** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.


Specifications

Dimensions and Weight

Feature V08 V12 V16
Engine type 50 Hz 50 Hz 50 Hz
Bore / stroke 132/160mm 132/160mm 132/160mm
Displacement 17.5dm3 26.3dm3 35dm3
Speed 1500min-1 1500min-1 1500min-1
Mean piston speed 8m/s 8m/s 8m/s
Length 3100mm 3830mm 4200mm
Width 1780mm 1780mm 1780mm
Height 2150mm 2150mm 2150mm
Dry weight genset 5720kg 7000kg 8070kg

Service Intervals

First service (check valve clearance) * Spark plug change Cylinder head inspection General overhaul
Natural gas 2000 Oh *** 400 Oh 40000 Oh ** 80000 Oh
Purified biogas, landfill gas, and sewage gas 2000 Oh *** 4000 Oh 32000 Oh ** 64000 Oh
Unpurified biogas, landfill gas, and sewage gas 1500 Oh 4000 Oh 24000 Oh ** 48000 Oh
Oh – Operational Hours * "after commissioning (E10)" ** "at the latest" *** "gas quality High and Medium"

Looking for other options?

All MWM Gas Engines

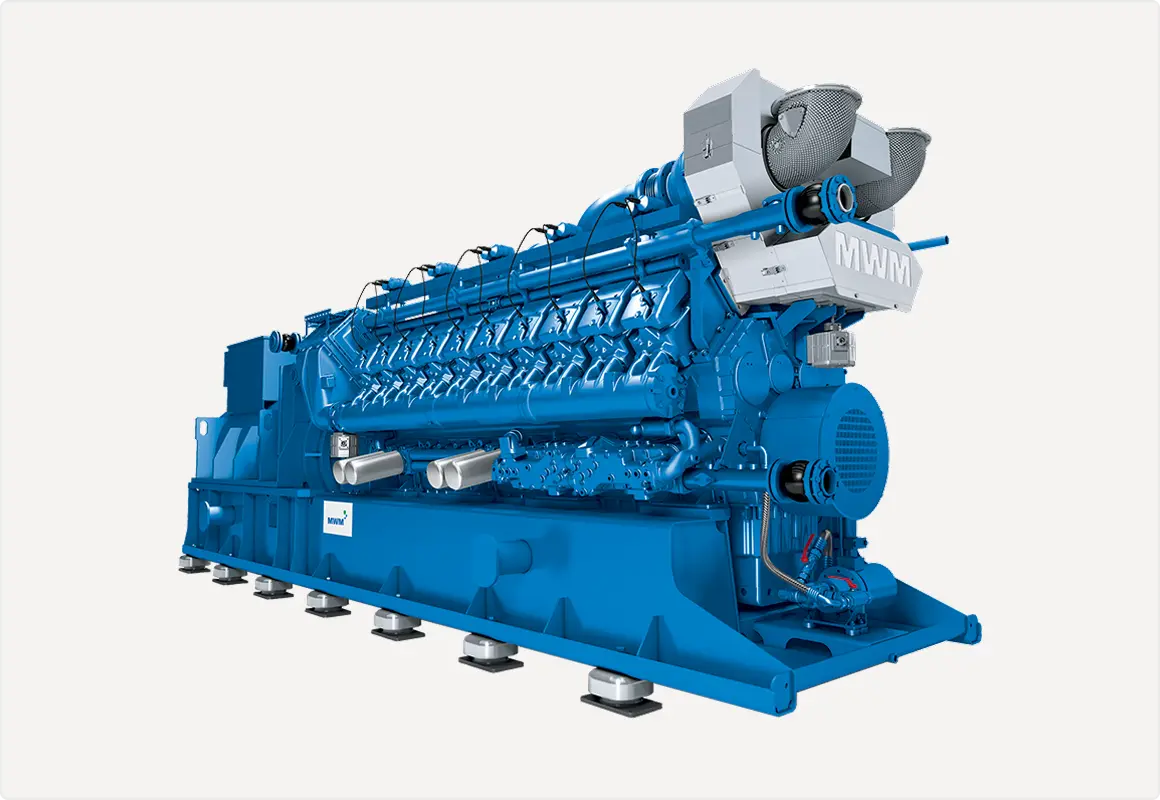

TCG 2020

TCG 2020 Details

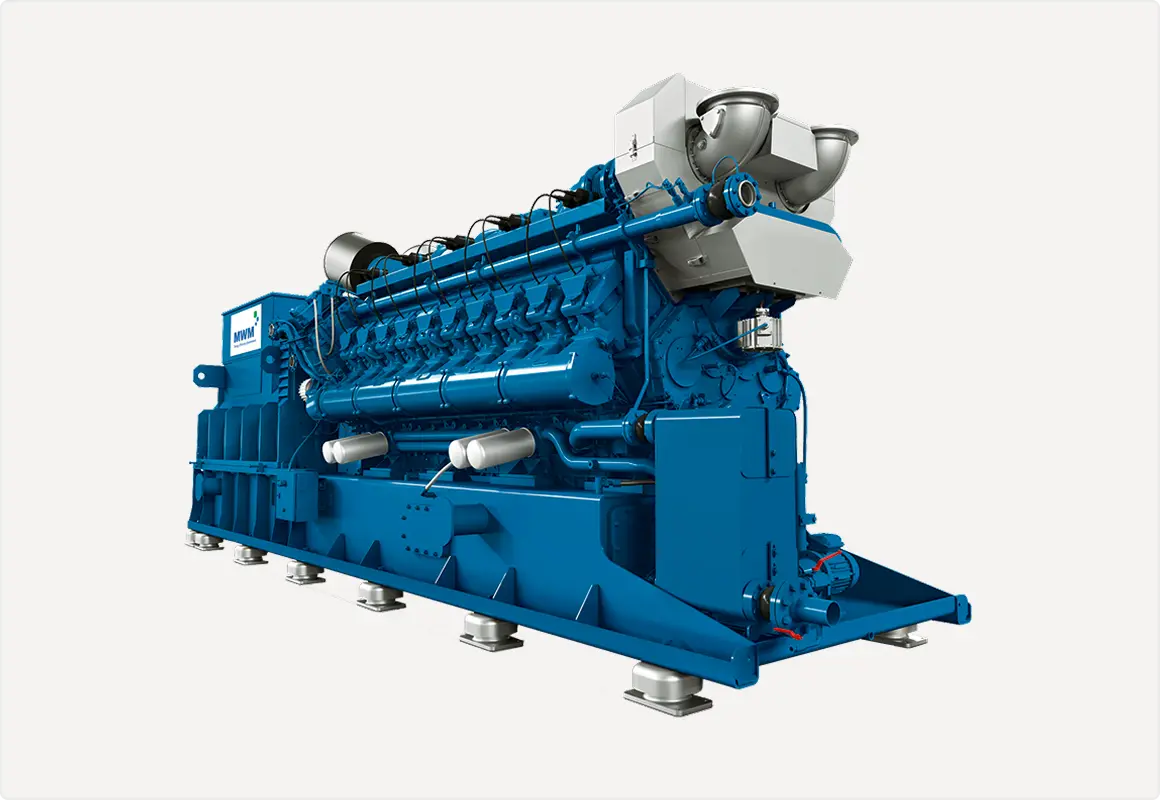

TCG 3020

TCG 3020 Details

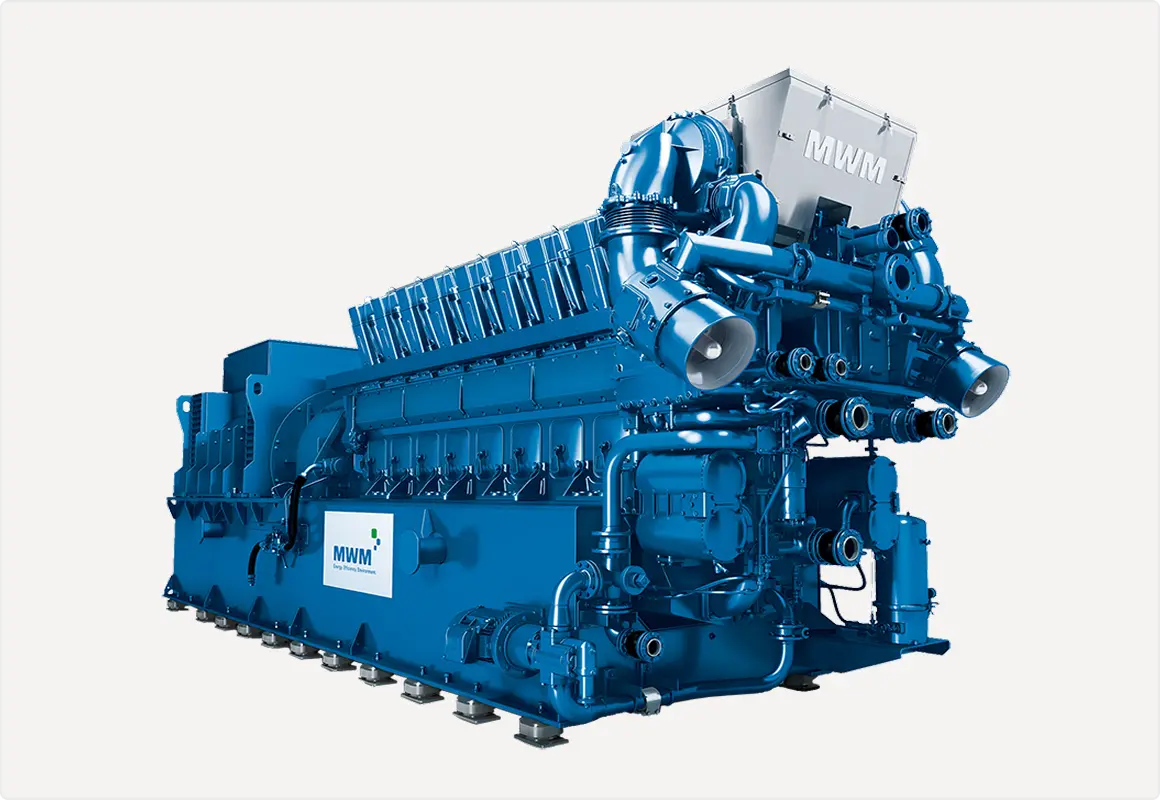

TCG 2032
