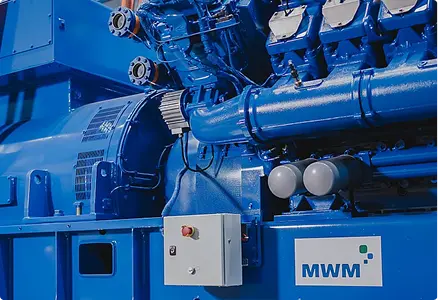

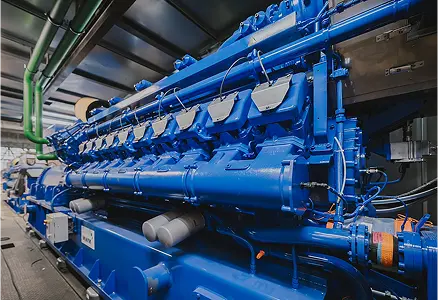

MWM TCG 2032

The MWM TCG 2032 series gas engines are engineered to meet the demands of today’s rapidly evolving energy market. Delivering output in the range of 3,000 to 4,500 kWe, they combine high efficiency, operational flexibility, and environmental performance with optimized operating costs. This makes them an ideal solution for a broad spectrum of applications requiring long-term reliability and profitability.

TCG 2032

High Availability, Low Installation Costs

Electrical Output
3,333 -4,500 kWe
Engine Layout
V12-V16 cyl
Download catalog PDF

WHY COGENERATION?

Benefits of MWM TCG 2032

High Performance

High Performance
  • Delivers electrical output from 3,333 to 4,500 kW
  • Ideal for large IPP (Independent Power Producer) projects up to 100,000 kWe
  • Optional fast ramp-up capability (TCG 2032B V16) ensures quick response to load changes

Cost Efficiency

Cost Efficiency
  • Designed for high operational reliability in demanding environments
  • Low operating and maintenance costs reduce total cost of ownership
  • Optimized for continuous operation with minimal downtime

Sustainability

Sustainability
  • Compatible with a wide range of gas types: natural gas, biogas, APG, landfill gas, sewage gas, mine gas.
  • Supports environmentally friendly and renewable energy projects
  • Enables adaptability to various local fuel sources and conditions

ABOUT MWM TCG 2032

Gas Engine Features

All Gas Engines
1

More
Profit

The optimised maintenance concept with cylinder units simplifies accessibility and, along with reduction of the number of different parts, minimises the time required for maintenance.

2

Longer
Run Times

Thanks to the extended service intervals, runs up to 200 hours longer per annum than comparable products. The major overhaul is scheduled after 80,000 operating hours

3

Generator Reliability

The particle-free combustion, with pre-chamber spark plugs, extends the service intervals for the exhaust gas heat exchanger and reduces service costs compared to other combustion methods.

4

Optimum
Efficiency

All components relevant for efficiency and power output are monitored by the TEM. The new, upgraded wastegate in particular ensures a more efficient operation with changing conditions.

5

Turbo
Power

The high-pressure turbocharger A140, with an improved wastegate, allows operation with a broader air intake temperature range and up to higher altitudes.

TCG 2032 performance data

FLUEL TYPE

Natural Gas
Biogas, landfill gas, and sewage gas
Feature
V12
V16
V16 B
Engine type
50 Hz
50 Hz
50 Hz
Electrical output
3,333kW
4,300kW
4,500kW
Mean effective pressure
20.0 bar
19.4 bar
20.3 bar
Thermal output ± 8%
3,238kW
4,164kW
4,259kW
Electrical efficiency
43.9%
42.7%
43.2%
Thermal efficiency
42.6%
42.7%
43.2%
Total efficiency
86.5%
86.8%
87.8%
Power to heat ratio **
1.03
1.03
1.03

* NOx <500 mg/Nm3

** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.

TCG 2032
V16
Engine type
50 Hz
Electrical output
3770kW
Mean effective pressure
17.0 bar
Thermal output ± 8%
3496kW
Electrical efficiency
43.0%
Thermal efficiency
39.8%
Overall efficiency
82.8%
Power to heat ratio **
1.08

* With 5% O2 and dry exhaust gas

** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.


Specifications

Dimensions and Weight

Feature V12 V16 V16 B
Engine type 50 Hz 50 Hz 50 Hz
Bore / stroke 260/320mm 260/320mm 260/320mm
Displacement 203.9dm3 271.8dm3 271.8dm3
Speed 1000min-1 1000min-1 1000min-1
Mean piston speed 10.7m/s 10.7m/s 10.7m/s
Length 7860mm 9271mm 9272mm
Width 2660mm 2790mm 2790mm
Height 3390mm 3390mm 3390mm
Dry weight genset 43100kg 51400kg 51400kg

Service Intervals

TCG 2032 First service (check valve clearance) * Spark plug change Cylinder head inspection General overhaul
Natural gas 4000 Oh 20000 Oh 40000 Oh 80000 Oh
