Traditions & innovations
Better Energy Solutions
Better Energy Solutions

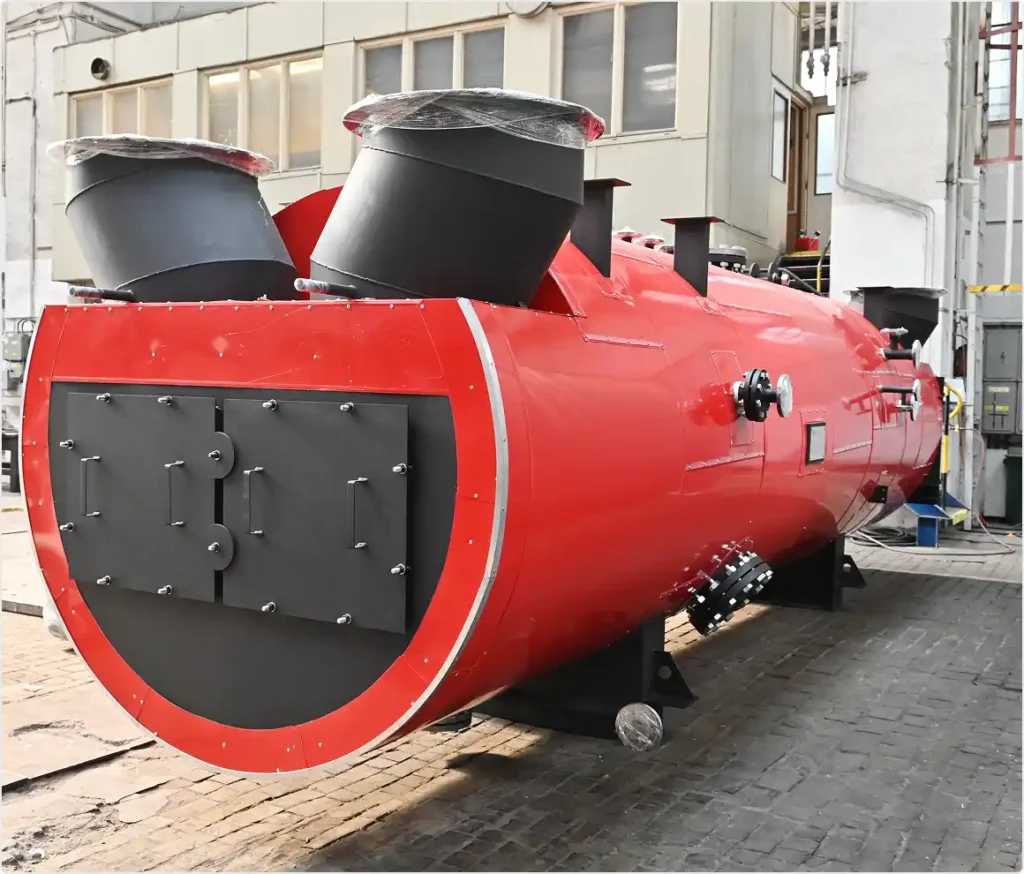

PRŮMYSLOVESTA Exhaust Heat Exchangers
These innovative systems allow for the conversion of waste heat from internal combustion engine exhaust gases into valuable thermal energy, significantly increasing the overall efficiency of your energy complex. We offer flexible placement options for these boilers: they can be integrated into modular combined heat and power (CHP) units, positioned separately to the side, on the roof, or in their own dedicated container, adapting to any spatial constraints.
OWN TRADE MARK

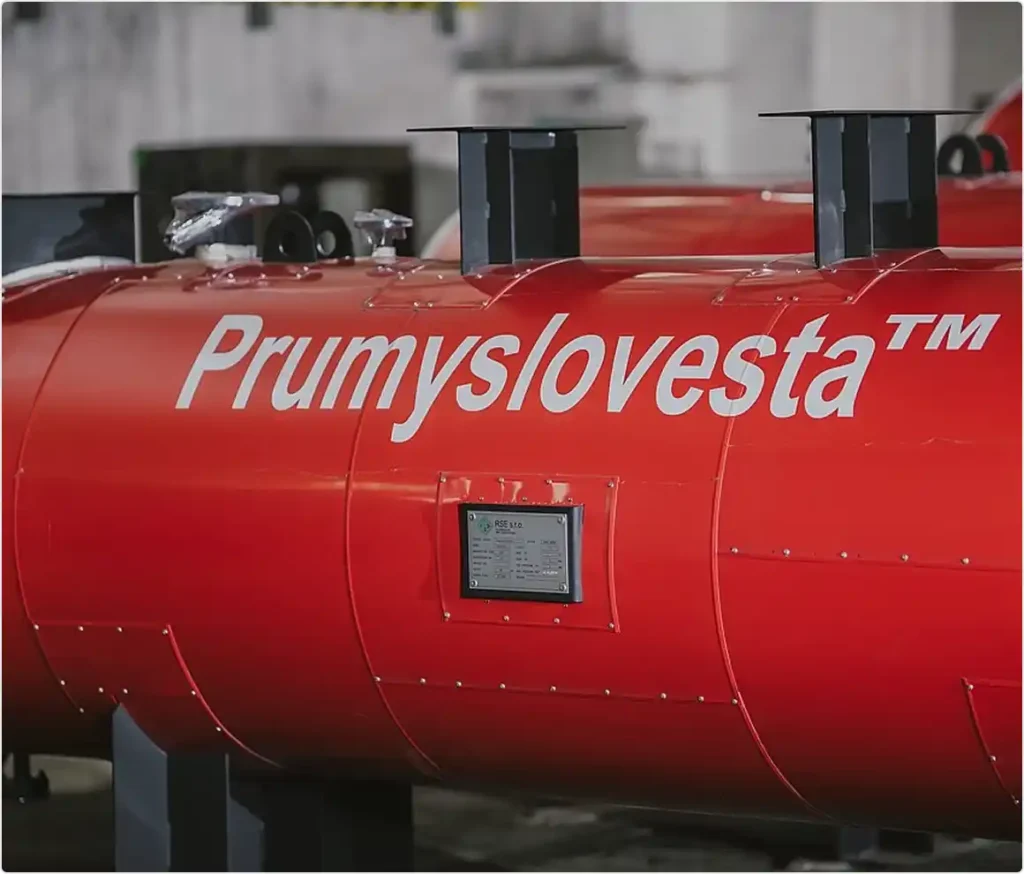

PRŮMYSLOVESTA trade mark
At RSE, we are proud to offer not only highly efficient cogeneration units but also to integrate our own-produced exhaust heat exchangers under the PRŮMYSLOVESTA trade mark.
Maximizing Exhaust Gas Heat Efficiency
ABOUT Exhaust Heat Exchangers
Operating Principle and Benefits of Exhaust Heat Exchangers
Boilers on flue gases are a key component in cogeneration (CHP) systems, where they perform the function of heat recovery. CHP units generate not only electricity but also a significant amount of heat in the form of hot exhaust gases. Instead of simply releasing this heat into the atmosphere, PRŮMYSLOVESTA waste heat boilers efficiently capture and convert it into:
Hot water
for heating, domestic hot water, or technological processes
Steam
(low, medium, or high pressure) for industrial, sterilization, or other needs
These systems are particularly beneficial for enterprises with a constant demand for both electrical and thermal energy, such as:
WHY CHOOSE Exhaust Heat Exchangers?
Key advantages of using PRŮMYSLOVESTA boilers
1
Significant efficiency increase
- Maximizing fuel energy utilization, reducing operational costs.
2
Energy independence
- Reducing reliance on external heat sources.
3
Environmental friendliness
- Lowering greenhouse gas emissions through more complete fuel utilization.
4
Rapid payback
- Investments in waste heat boilers quickly return through energy savings.
5
Reliability
- High production quality ensures longevity and stable operation.
PRŮMYSLOVESTA Boilers Line-up
We offer three main types of exhaust heat exchangers, designed to meet diverse thermal energy needs. Our production capacity allows us to produce up to 400 units per year, ensuring availability and prompt delivery.
VWKG Type Hot Water Boilers
| Power Range | from 440 to 1840 kW |
- Automatic fire-tube boiler designed for recovering heat from internal combustion engine exhaust gases.
- Ideal for applications requiring a continuous supply of hot water.
- Operates under positive pressure on the exhaust gas side.
- Utilizes correctly sized heating surfaces for maximum efficiency.
- VWKG boilers ensure high efficiency through optimal utilization of exhaust gas heat
VSKG Type Steam Boilers
| Steam Production | from 600 to 1800 kg/per hour |
- Automatic medium-pressure exhaust gas steam boiler for recovering heat from internal combustion engine exhaust gases
- Two-pass design with two tube bundles for enhanced heat exchange efficiency
- Separate exhaust gas inlet and outlet manifolds ensure optimal flow and thermal performance
- Operating pressure: 8 bar
- Steam temperature: 175 °C
- Suitable for a wide range of industrial applications
VSKG Double Type Steam Boilers
| Steam Production | from 1480 to 2400 kg/per hour |
- Medium-pressure exhaust gas steam boiler with a twin design for simultaneous heat recovery from two gas engines
- Each engine features a separate exhaust gas passage circuit
- Shared evaporator within the boiler maximizes efficiency
- VSKG Double design reduces overall project implementation costs
- Space-saving solution compared to using separate steam boilers for each engine
- Ideal for larger systems seeking a cost-effective and compact setup
Optimize energy use with PRŮMYSLOVESTA waste heat boilers.
Contact us today to learn how we can help you maximize energy utilization and reduce costs.
