VWKG Type

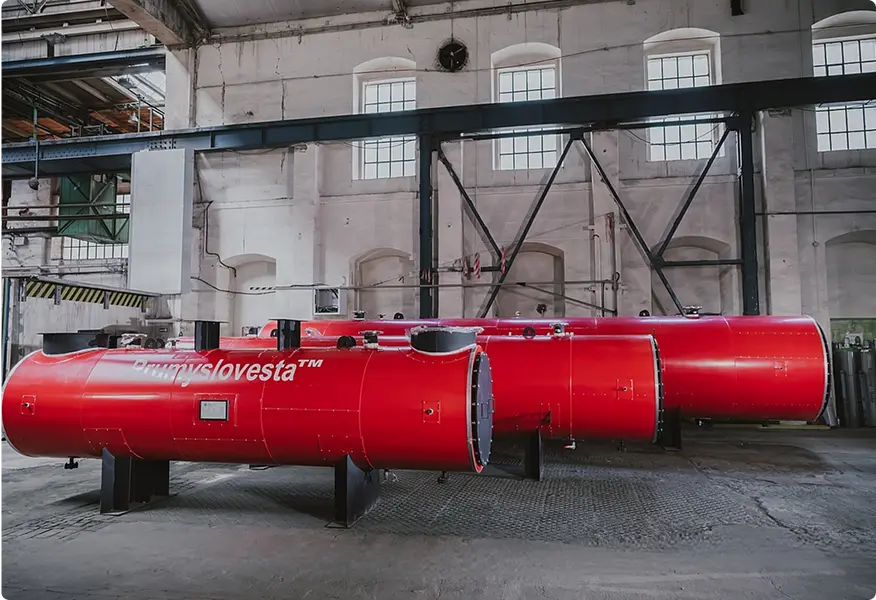

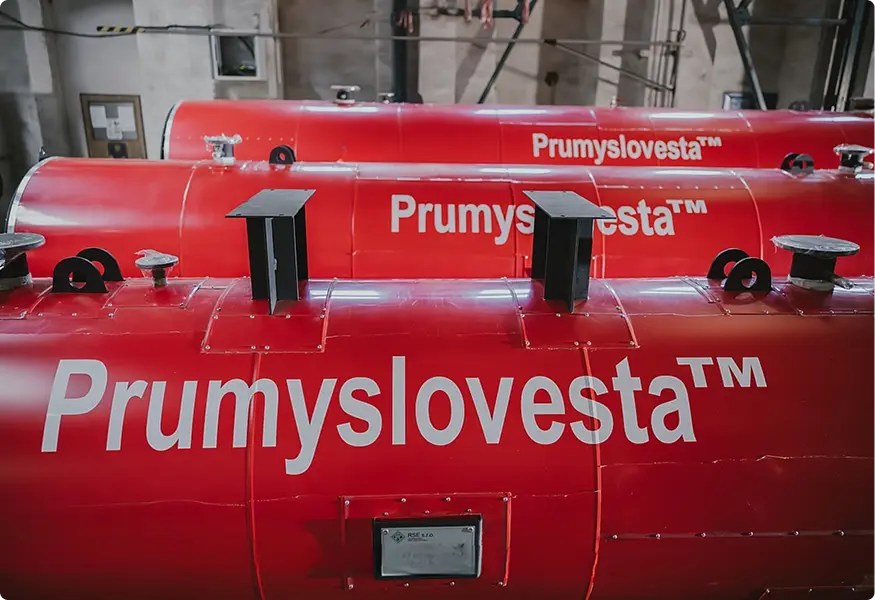

Chimney boilers for heat utilization of flue gases type VWKG. The automatic flue gas boiler is a heat tube boiler that uses waste heat from internal combustion engines. Using boilers is particularly advantageous where a continuous source of heat is required. Operation in the overpressure mode on the flue gas side with correctly calculated dimensions of the heating surfaces ensures an ideal use of the heat of the flue gases and, thus, high efficiency.

VWKG performance data

Specifications

Feature		VWKG 1000H	VWKG 1200H	VWKG 1500H	VWKG 2300H	VWKG 4300H	VWKG 4500H
Rated heat output	kW	440	550	730	980	2150	1840
Boiler Efficiency without economizer	%	94-96	94-96	94-96	94-96	94-96	94-96
Flue gas temperature at the boiler inlet	℃	410	415	410	380	456	380
Dry flue gas volume	Nm3.h-1	3804	4527	5976	8310	15876	16970
Wet flue gas volume	Nm3.h-1	4260	5066	6686	9320	17800	18970
Operating pressure	bar	6	6	6	6	6	6
Test pressure	bar	9	9	9	9	9	9
Operating temperature	℃	105	105	105	105	105	105
Maximum allowable temperature	℃	110	110	110	110	110	110
Pressure loss on the flue gas side	mbar	15	15	15	18	20	20
