VSKG Double Type

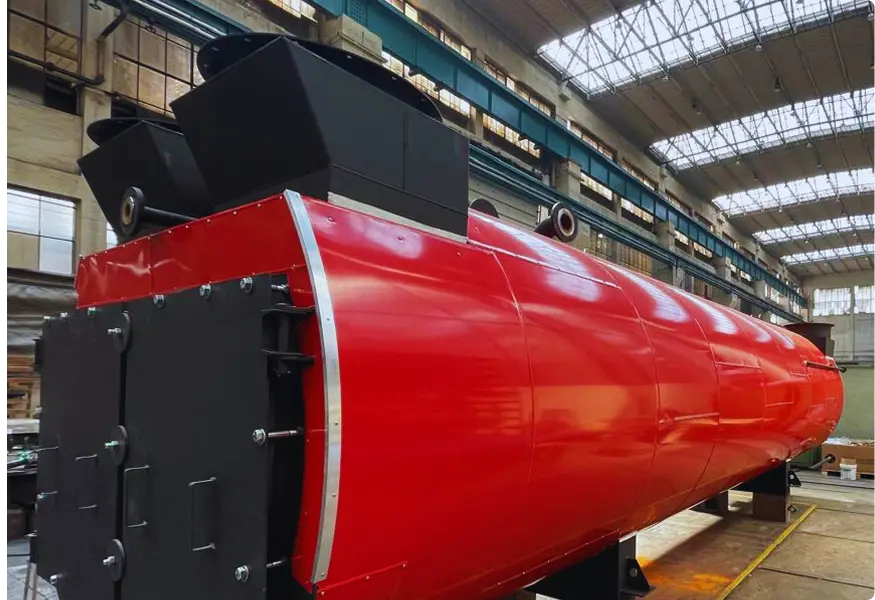

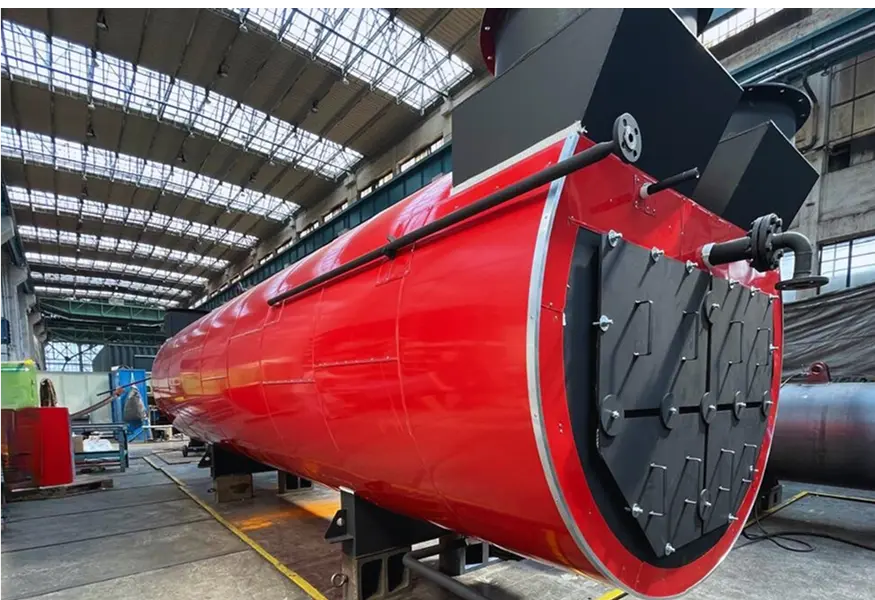

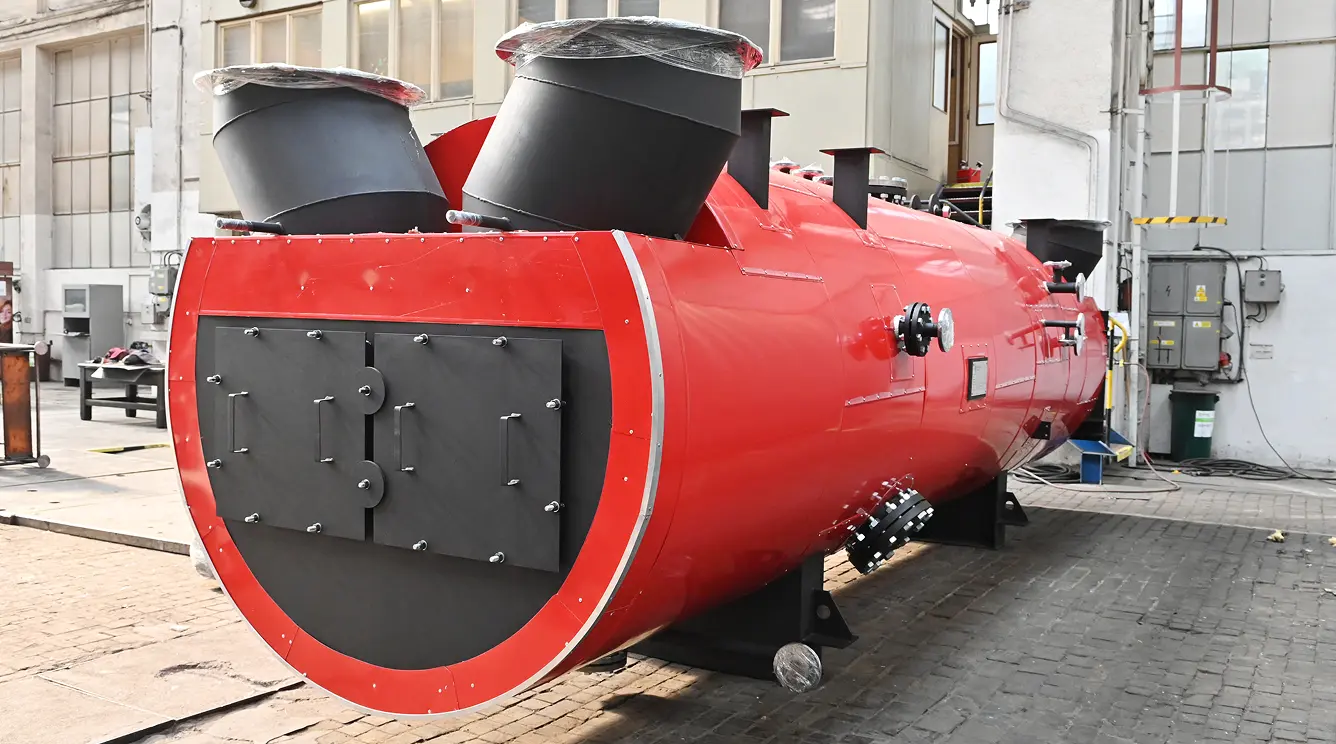

Flue gas steam boiler of medium pressure for heat utilization of flue gases, type VSKG Double. Automatic medium pressure steam boiler with double layout for utilizing waste heat from the two gas engines simultaneously. Each engine has its own separate flue gas pass. The boiler evaporator is shared. Using VSKG Double saves project costs and boiler room space compared to using separate steam boiler for each engine.

VSKG performance data

Feature

Specification		VSKG 1500H Double	VSKG 2300H Double	VSKG 4500H Double
Steam output (at 105 °C feed water temperature)	t/h	1480	2400	4500
Rated heat output	kW	1020	1600	3100
Flue gas temperature at the boiler inlet	℃	420	450	450
Dry flue gas volume	Nm3.h-1	2х5976	2х8310	2х15800
Wet flue gas volume	Nm3.h-1	2х6650	2х9300	2х17800
Operating steam pressure	bar	13	13	13
Maximum allowable steam pressure	bar	13	13	13
Test pressure	bar	23	23	23
Maximum allowable steam temperature	℃	195	195	195
Maximum allowable temperature	℃	195	195	195
Pressure loss on the flue gas side	mbar	18	18	18

VSKG performance data

Feature

Feature		VSKG 1500H Double	VSKG 2300H Double	VSKG 4500H Double
Shipping weight	kg	8700	11900	17500
Water volume at minimum level	l	3870	8100	15300
Steam volume from minimum water level	l	1630	2230	5900
Total volume of the boiler	l	5500	10330	21200
Flue gas inlet	ø	2х560	2х630	2х100
Flue gas outlet	ø	2х560	2х560	2х100
Boiler inspection hatch	DN/mm	200	200	200
