VSKG Type

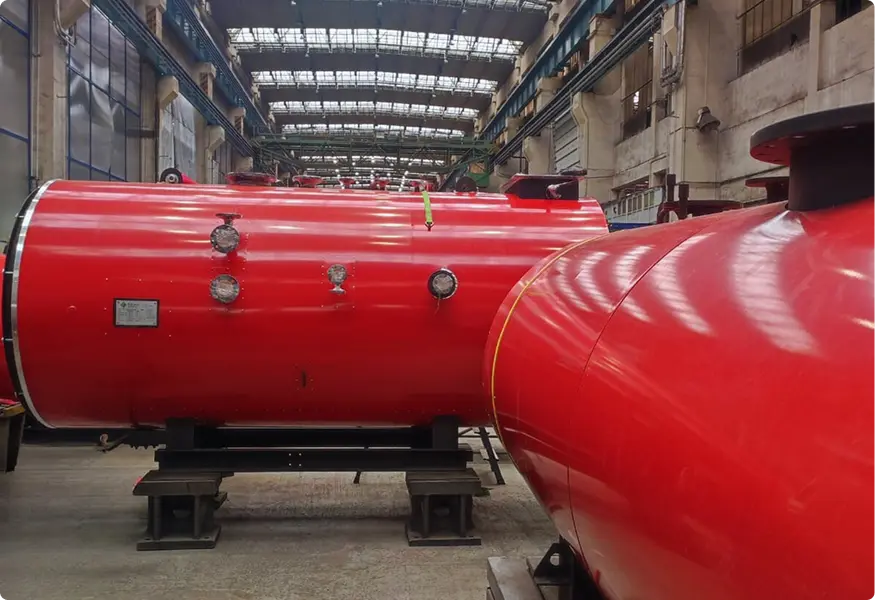

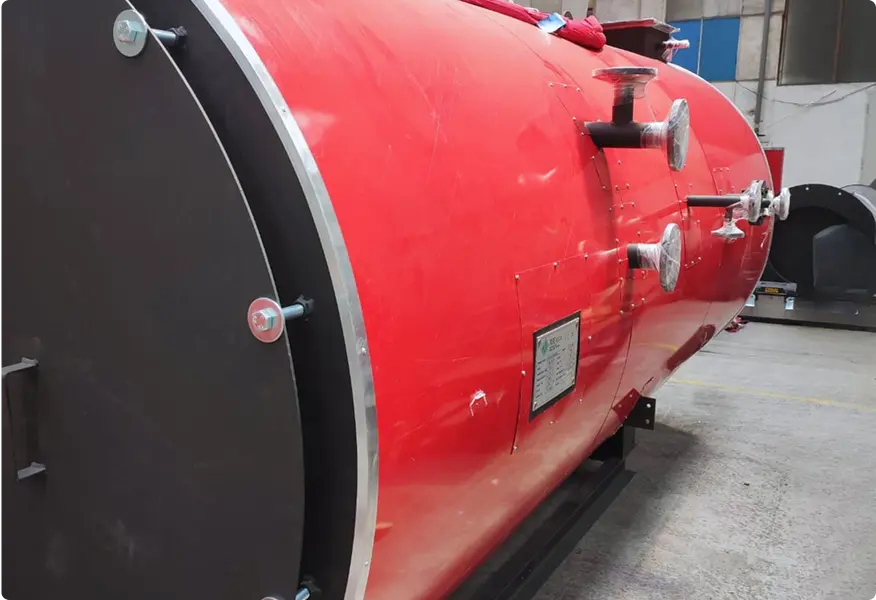

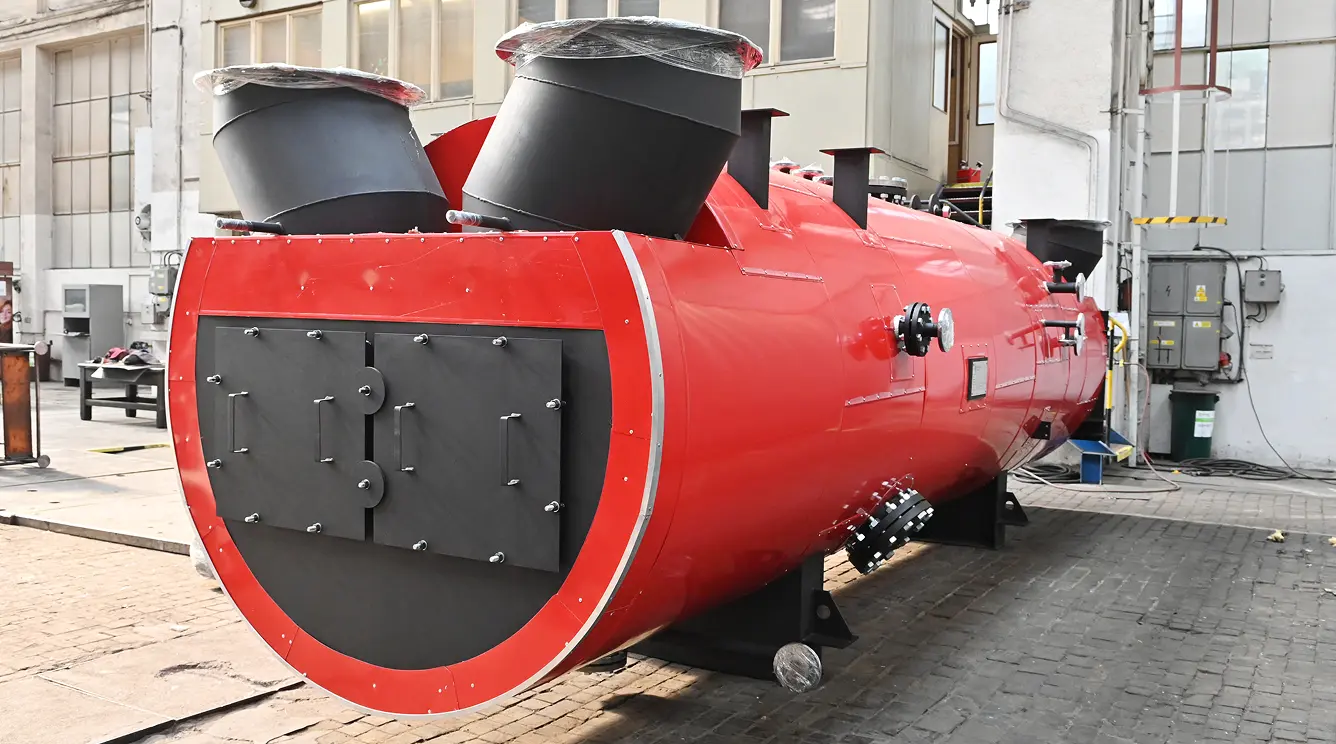

Flue gas steam boiler of medium pressure for heat utilization of flue gases, type VSKG. Automatic medium-pressure steam boiler using waste heat from internal combustion engines. The boiler has a two-pass design and two pipe bundles with inlet and outlet flue gas collectors. The working pressure of the boiler is 8 bar, and the temperature is 175 °C.

VSKG performance data

Feature

Specification		VSKG 1000H	VSKG 1500H	VSKG 2300H	VSKG 4500H
Steam output (at 105 °C feed water temperature)	t/h	0.6	0.7	0.9	1.8
Rated heat output	kW	420	520	600	1250
Boiler Efficiency without economizer	%	90–92	90–92	90–92	90–92
Flue gas temperature at the boiler inlet	℃	410	420	380	380
Dry flue gas volume	Nm3.h-1	3804	5976	8310	16969
Wet flue gas volume	Nm3.h-1	4260	6686	9320	18964
Operating steam pressure	bar	8	8	8	8
Maximum allowable steam pressure	bar	10	10	10	10
Test pressure	bar	18	18	18	18
Maximum allowable steam temperature	℃	175	175	175	175
Maximum allowable temperature	℃	184	184	184	184
Pressure loss on the flue gas side	mbar	15	15	15	15

VSKG performance data

Feature

Feature		VSKG 1000H	VSKG 1500H	VSKG 2300H	VSKG 4500H
Shipping weight	kg	3600	4485	6400	11780
Water volume at minimum level	l	2100	2320	6060	10480
Steam volume from minimum water level	l	1100	1285	2660	4205
Total volume of the boiler	l	3200	3605	8720	14685
Flue gas inlet	ø mm	750	846	1024	1360
Flue gas outlet	mm	630x400	630x400	900x480	1500x550
Boiler inspection hatch	DN/mm	200	200	320x420	320x420
